SBR Linear Guide Rail

Precision Engineering & Robust Design & Quiet Operation

This SBR linear guide rail set includes 2 guide rails and 4 slide blocks, designed for high performance and durability. Constructed from sturdy aluminum, the guide rails offer precise hole alignment and spacing. The SBR slide blocks feature ball bearings for smooth, friction-free movement. Available in various specifications to meet different requirements, this guide rail system ensures reliable and quiet operation.

• Quiet and Smooth Sliding Exceptional Precision Complete SBR Linear Guide Set Long-Lasting Durability

Key Features

• Versatile Applications:Ideal for a range of high-load automation equipment and DIY projects, the SBR linear rail set is suitable for use in router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, and more.

• Comprehensive Linear Guide Rail Set:This set includes two 1000 mm long SBR12 guide rails and four SBR12UU slide blocks. Each slide block supports dynamic loads up to 372 N and static loads up to 549 N, making it a robust solution for various applications.

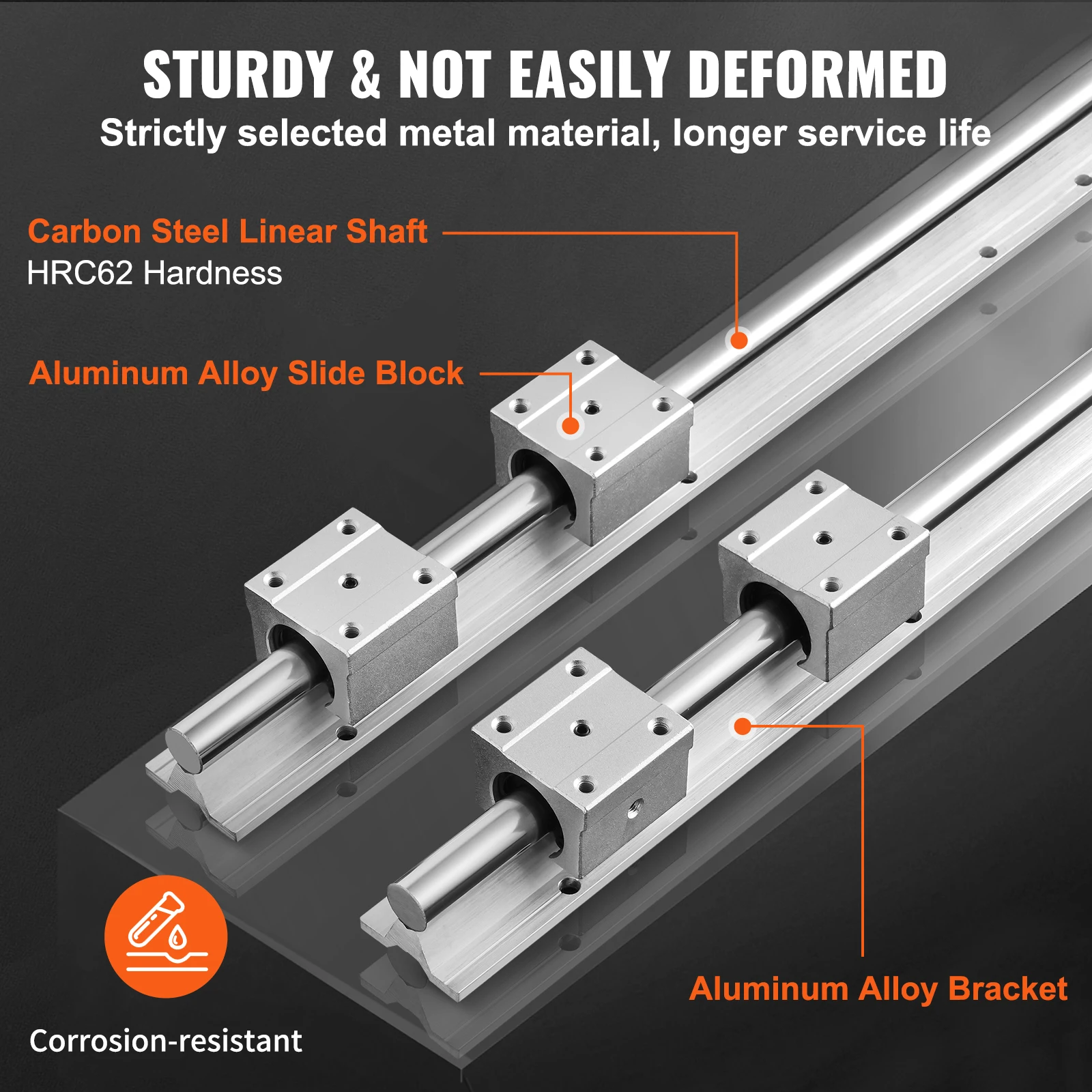

• Durable and Long-Lasting Construction:Made from carbon steel and aluminum, the linear rails feature a chrome-plated surface for enhanced rust resistance and durability. The set includes four aluminum slide blocks with ball bearings for smooth and consistent sliding performance.

• High Precision for Reliable Performance:The linear rails boast precise circular shaft dimensions and straightness, providing high accuracy and stability in motion. The sturdy aluminum base and accurately placed mounting holes ensure easy and reliable installation.

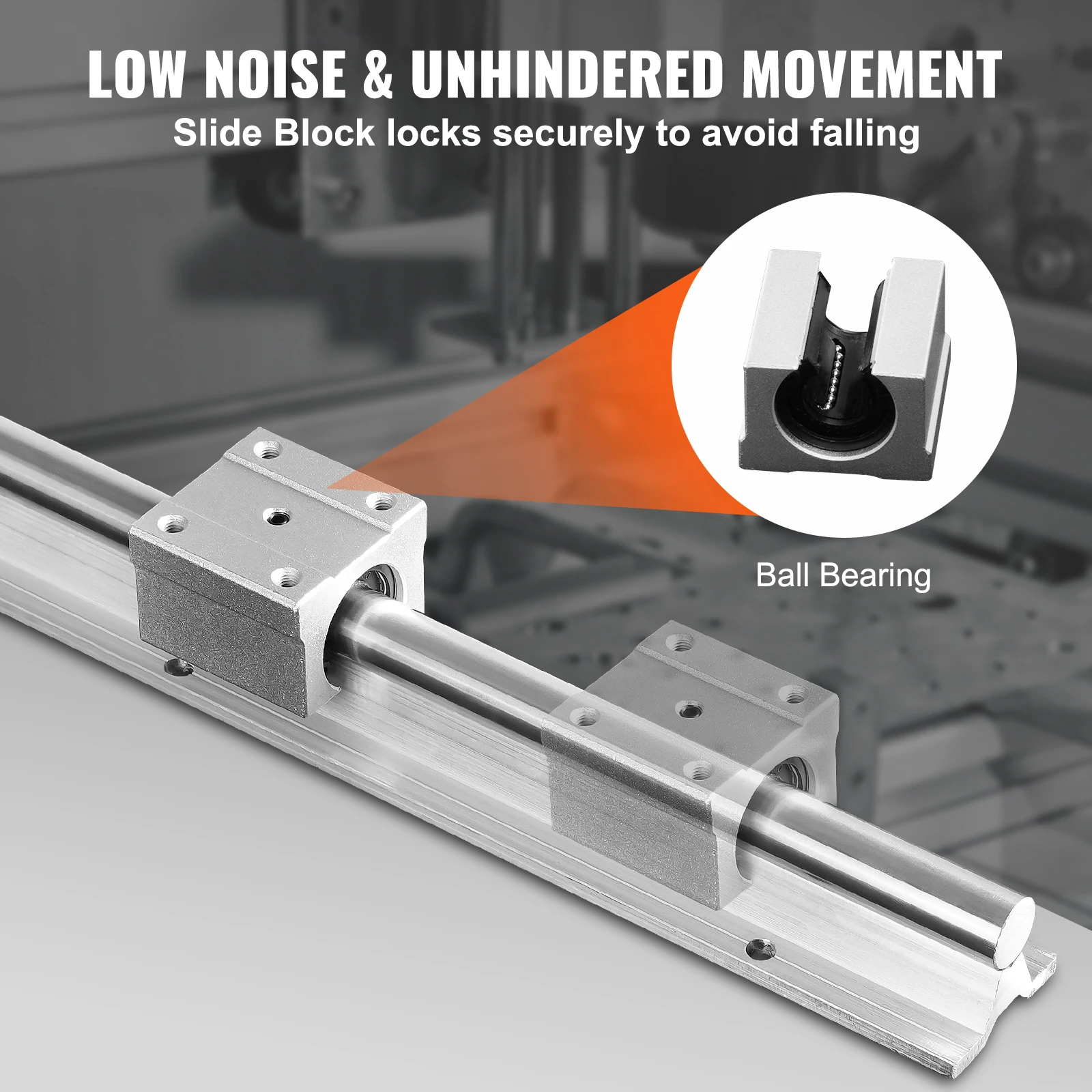

• Low Noise Operation:The combination of aluminum SBR slide blocks and a carbon steel linear shaft, paired with built-in ball bearings, ensures low-friction, smooth sliding with minimal noise and tilt. This design helps reduce labor and improve control.

Simplified Installation

The guide rails arrive pre-assembled with the shaft, support, and sliding blocks. They feature mounting screw holes in both the blocks and the rail base, allowing for easy setup and adjustment of sliding bearing tightness via the side screw hole.

Superior Corrosion Resistance

Chrome-plated linear shafts resist corrosion and perform well in humid environments, offering added durability and heat resistance.

Versatile Applications

This linear rail kit is ideal for various high-load automation setups and DIY projects, including CNC engraving machines, lathes, and more..

Precision Engineering

The linear motion guides are designed with exact hole distances, diameters, and standard shaft dimensions, allowing for precise equipment installation.

Seamless Sliding Action

With aluminum SBR slide blocks and integrated ball bearings, this system ensures smooth, effortless movement and consistent, long-term performance.

Effortless Handle Pressure

The linear bearing features a robust all-metal construction with a securely locked slide block on the linear shaft, providing excellent bearing capacity.

Specification

• Product Dimensions (L x W x H): 1000 x 64 x 29.6 mm / 39.4 x 2.5 x 1.2 in, Slide Block Size (L x W x H): 39 x 40 x 27.6 mm / 1.5 x 1.6 x 1 in, Package Size (L x W x H): 1100 x 65 x 100 mm / 43.3 x 2.6 x 3.9 in, Slide Block Model: SBR12UU, Model Number: SBR12-C 1000L, Guide Rail Length: 1000 mm / 39.4 in, Shaft Diameter: Φ12 mm, Dynamic Load (per block): 372 N, Static Load (per block): 549 N, Material: High Carbon Steel & Aluminum, Mounting Hole Distance A: 28 mm / 1.1 in, Mounting Hole Distance B: 26 mm / 1 in, Net Weight: 3.4 kg / 7.5 lbs

Package Content

• 4 x SBR12UU Sliding Blocks, 2 x SBR12 1000mm Linear Guide Rails with Supports
